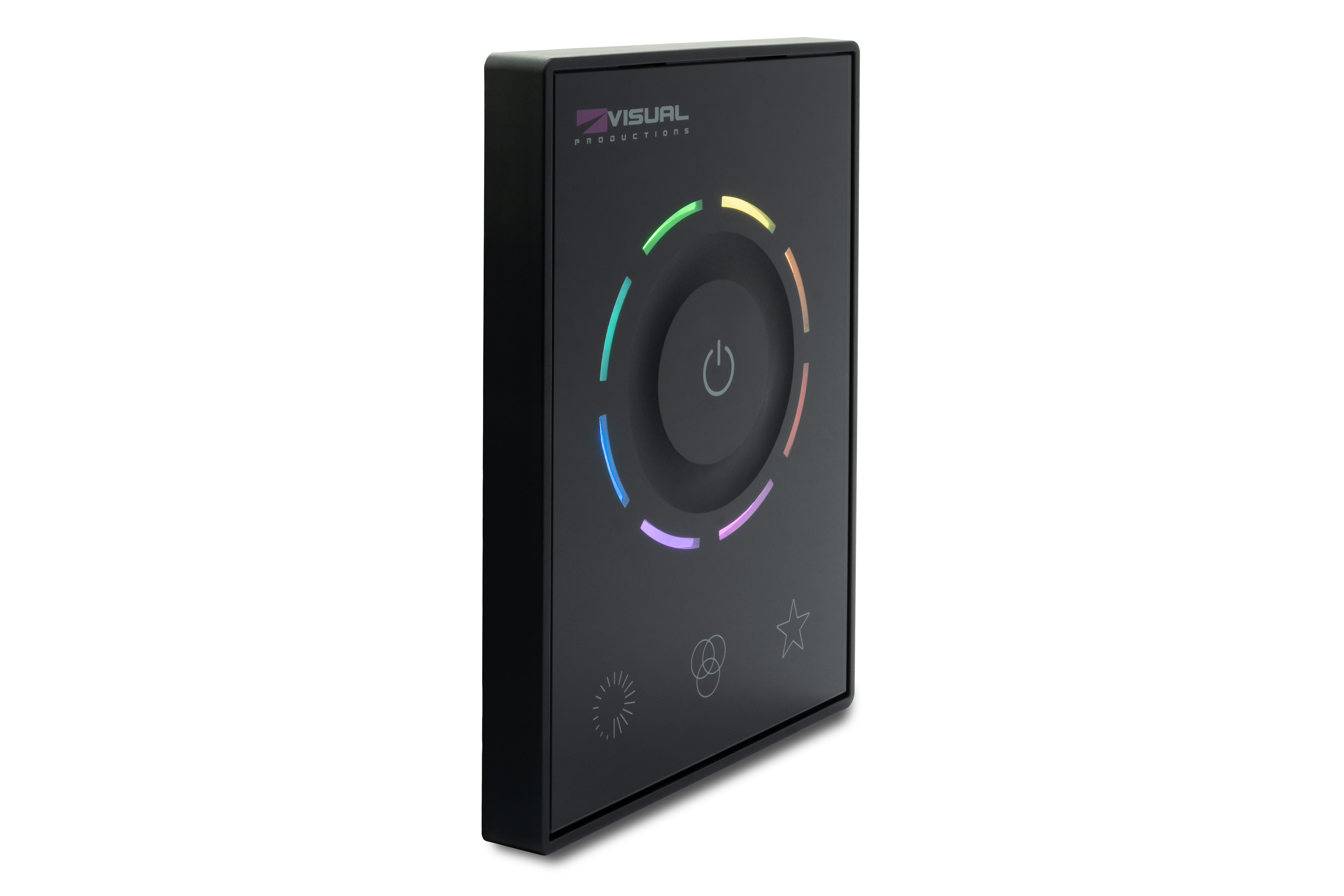

SPECIFICATIONS:

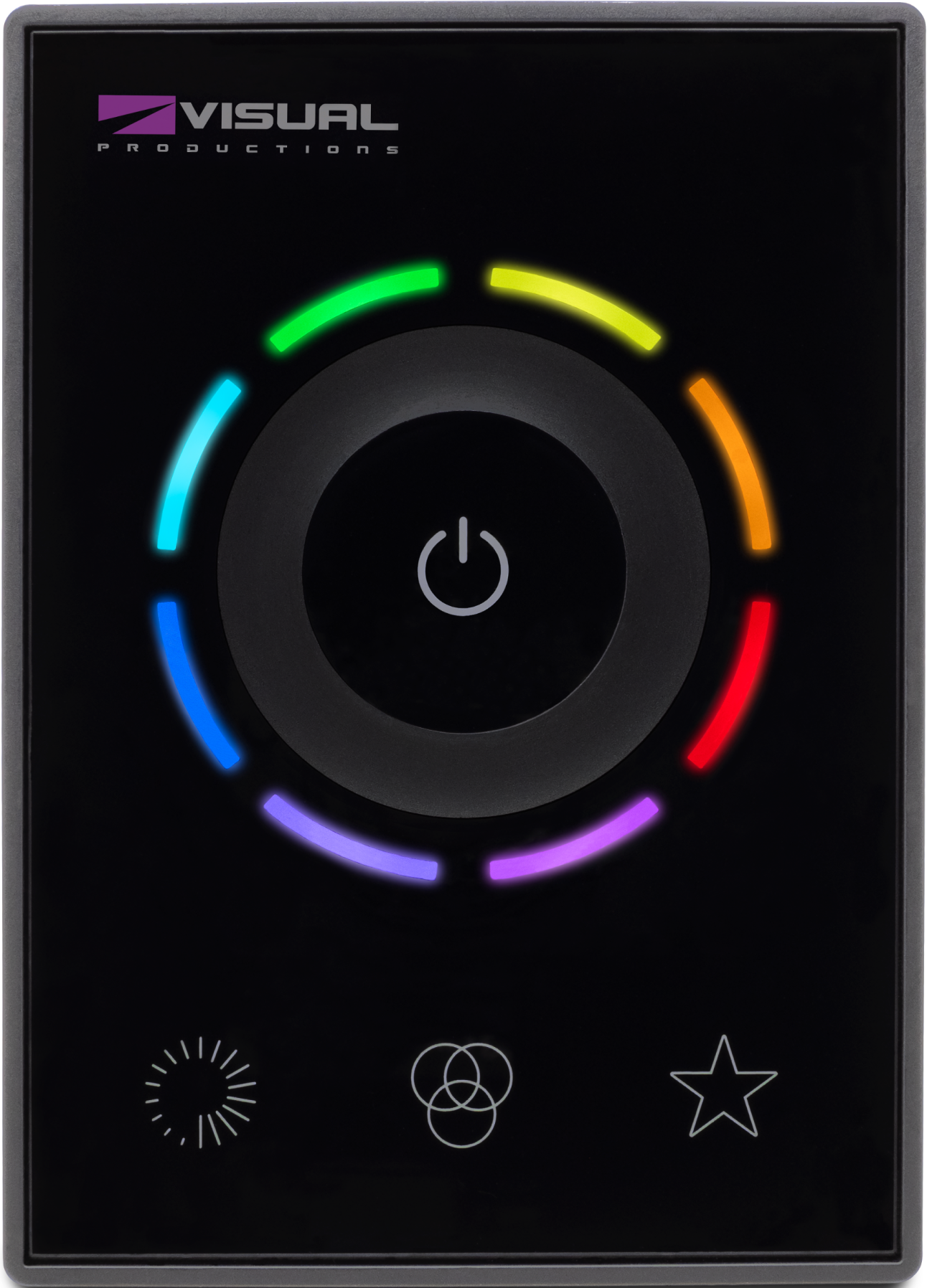

-DMX-512 Controller for one fixture group

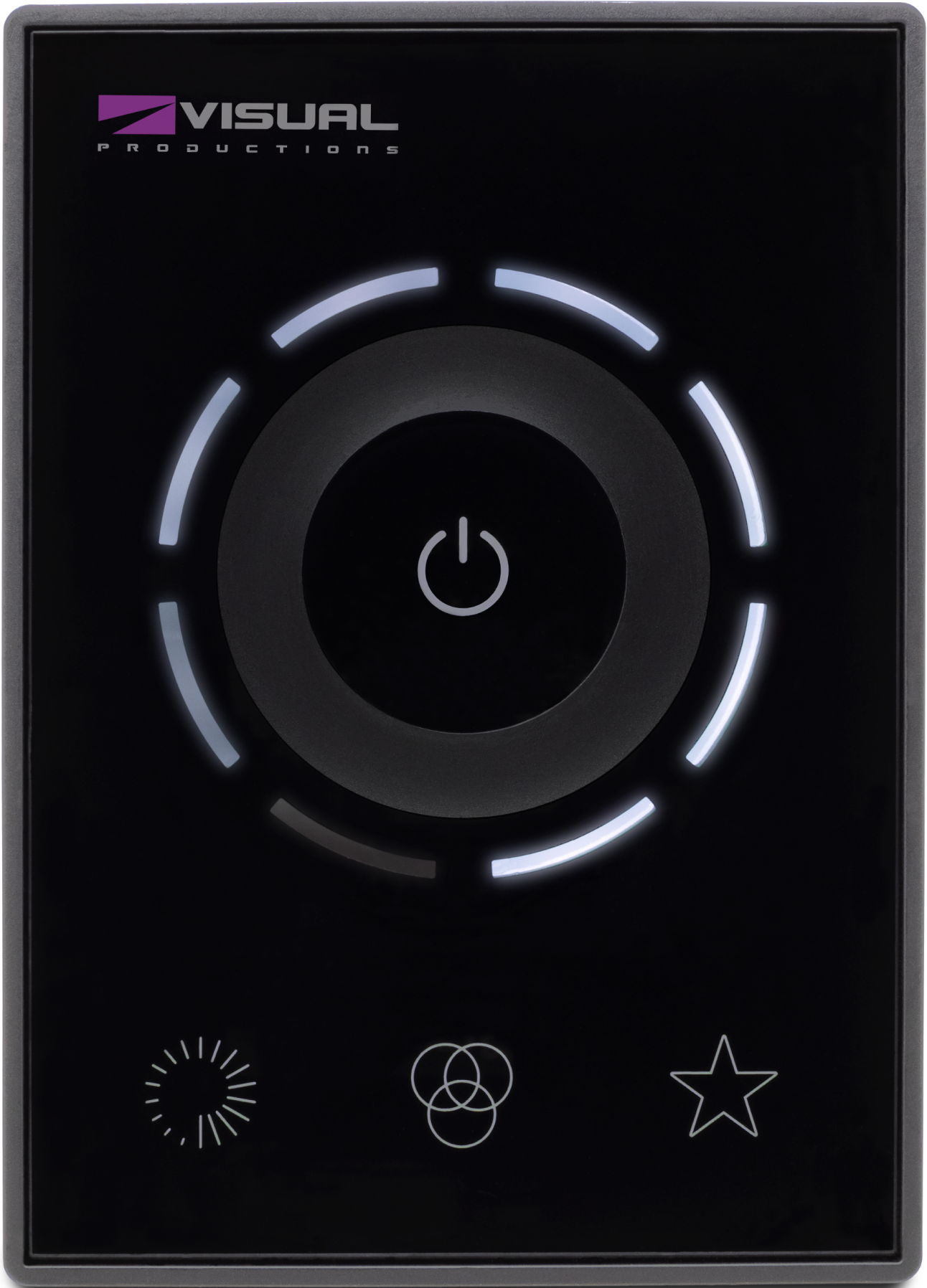

-Supports Intensity, RGB, Cold and Warm white
-Fits on standard gang box
-Haptic feedback
-Power consumption 9-24V DC 500mA
-Power Supply included

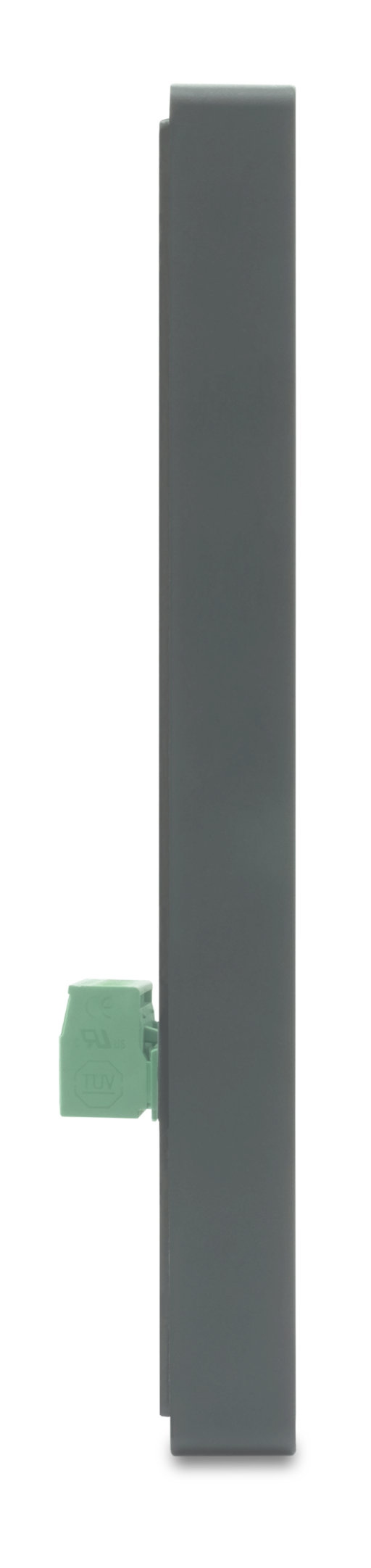

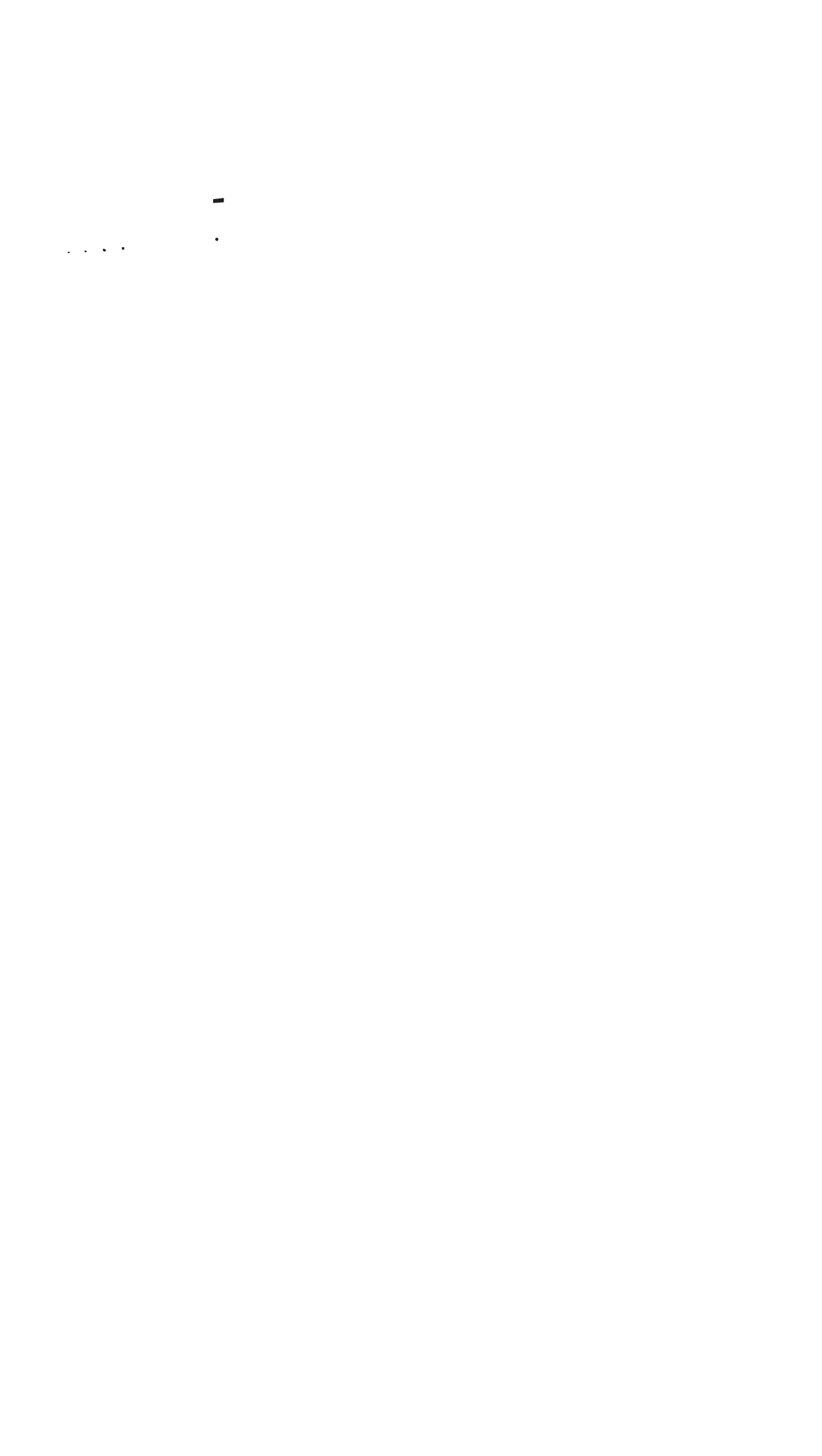

-Dimensions: 140x100x13 mm
(26 mm including connector)
-Operating temperature -20°C to +50°C (-4°F to 122°F)
-Operating relative humidity 10% to 80% non-condensing
-Compliance: CE, ROHS, UKCA

Switch it your way:

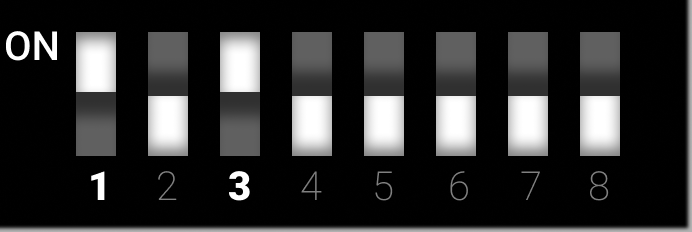

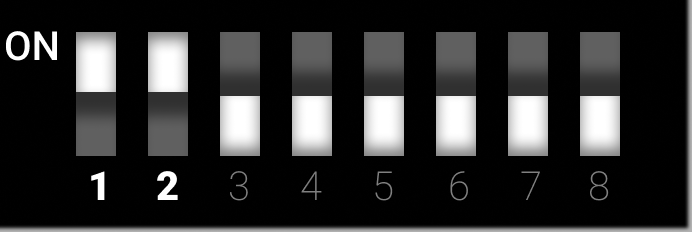

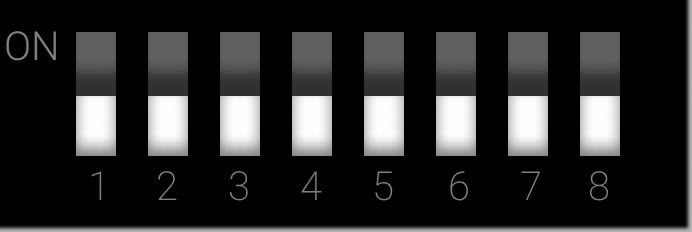

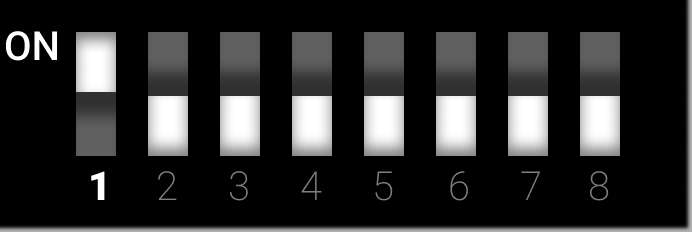

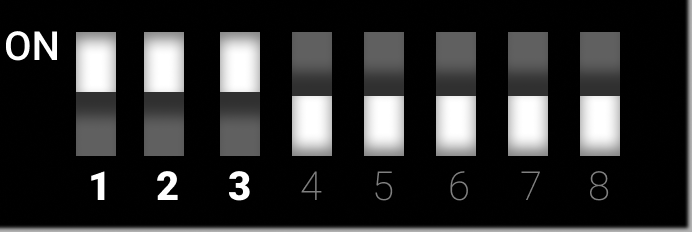

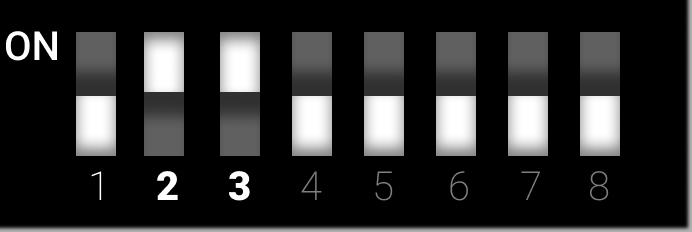

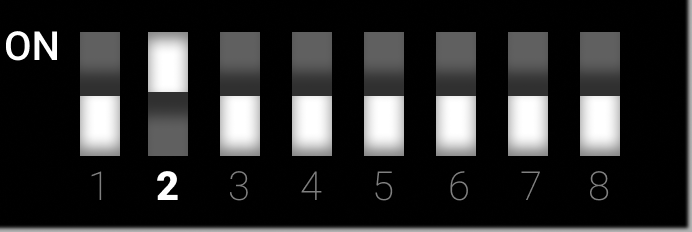

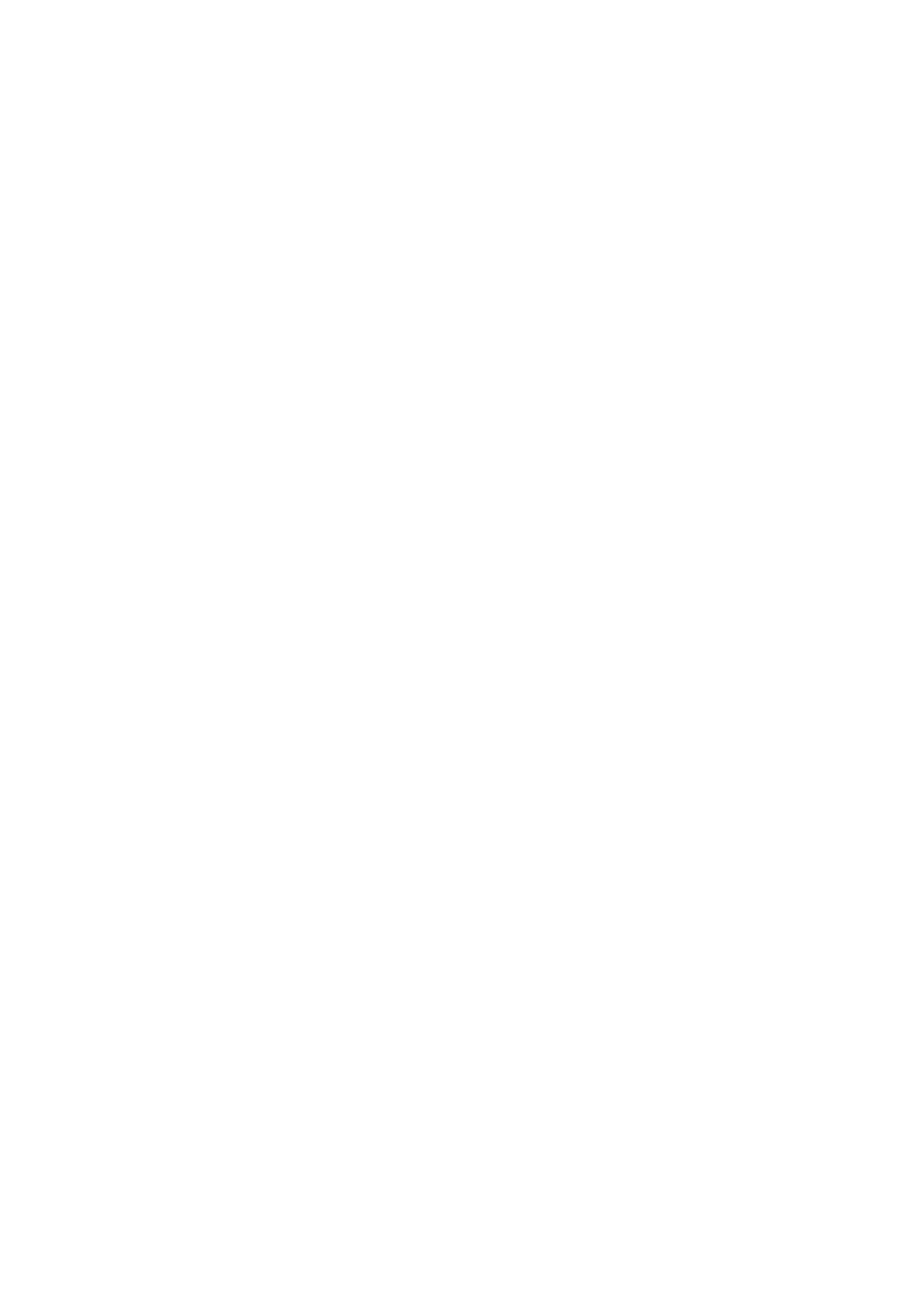

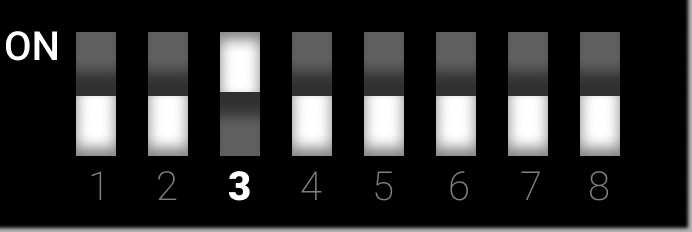

Dipswitch

Chn 1

Chn 2

Chn 3

Chn 4
